Picture rail for display
Refined designs and level adjustment allow you to create displays limited only by your imagination.
WIRE HANGING SYSTEMS
SYSTEM
- Affix to
ceilings and
floors - Suspend
from celling - Affix to ceiling
and floor with
a picture rail - Suspend from
celling with
a picture rail
ceiling
midway
midway
floor
picture rail
rail fitting
midway
midway
rail fitting
picture rail
Affix to ceilings and floors
ceiling
A fitting which serves as the base for a suspending wire. Embedded type, anchored type, screwed type, etc. Select a suitable fitting depending on the weight, safety, design, installation conditions, etc. of the object to be suspended.
midway
Various displays are possible depending on the use including shelf suspension, pipe suspension, panel suspension, border suspension, hooks, rings, etc. Select a suitable fitting depending on material qualities, fixing methods, etc.
floor
By fixing a wire in the floor, you can reduce the sway of the wire. If you cannot install into the floor, it can be simply fixed with a weight.
Suspend from celling
ceiling
A fitting which serves as the base for a suspending wire. It will require installation giving it enough strength for the weight of the object to be suspended.
midway
Select a suitable fitting from panel suspension, hooks, etc. May sometimes require modifications to reduce sway.

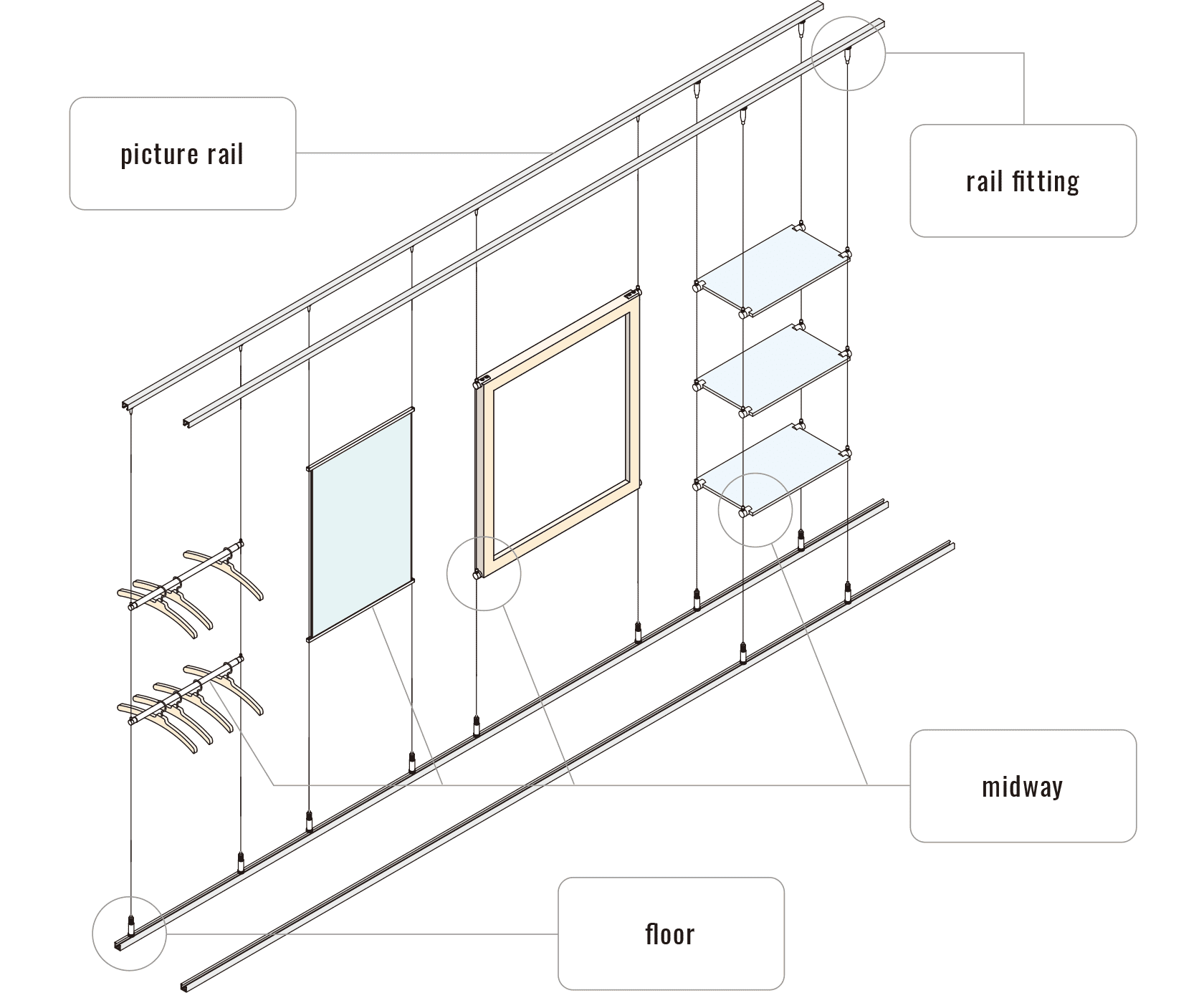

Affix to ceiling and floor with a picture rail
ceiling
side picture rail: Please select based on weight (30kg/70kg) and installation conditions (exposed/embedded).
Ceiling-side rail attachment
Please select based on weight (wire diameter) and how wire is stretched (vertical/diagonal).
Midway
Please select a suitable fitting depending on the display purpose (hook, shelf, panel, etc.).
Floor-side rail attachment
You can control the sway of the wire. Please select based on wire diameter and how wire is stretched (vertical/diagonal).
Floor-side picture rail
Please select based on installation conditions (exposed/embedded).
Suspend from celling with a picture rail
picture rail
The picture rail comes in two basic types: ceiling or wall installation. It is available in a pre-install type, installed at the design stage, and an after-install type, installed after finishing. You can choose based on the display items' weight, size, and mounting conditions.
rail fittings
The rail fitting is used to lower the wire cable from picture rails. It can be attached and removed from the picture rail with a one-touch operation and is secured once the wire cable is inserted.
hook(hanger)
The hook (hanger) is available in various types to match the diameter of the wire cable used: "standard type," "s type," and "security type." The appropriate type can be selected based on the mounted frame fittings and the intended use.
