Do install grippers or rails into structural framework, or use anchors as appropriate.
Make sure the gripper is correctly aligned. Ceiling-mounted grippers should have the pin facing down, but all others will have the pin facing up. (Fig.1)

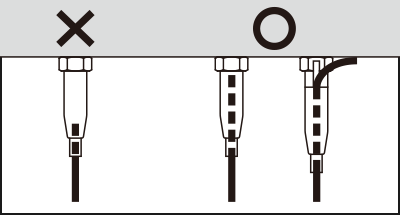

Make sure to insert cable into the gripper completely before using it. (Fig.2)
Please do not use cables thinner than the cable diameter that is compatible.
Do not disassemble or modify our products.
When using a universal type, do not use it by tilting it more than the allowable angle. Our products may be impossible to grip the cable and may fall. Also, the cable may be broken and impossible to use. (Fig.3)
Make sure to check on the cable that there is something wrong such as broken or cutting. (Fig.4)
Do not pull our products strongly. Ceiling equipments or items may fall. (Fig.5)And please note that children do not play with it.
Do not use our products for applications such as riding or hanging that may threaten human lives. (Fig.5)
Please select and use the product with allowance for safe working load. Due to shaking and uneven loading, unexpected load may be applied to each cable. (Fig.6)
Do not use our products after using overload. The parts may be damaged and it is not possible to obtain sufficient strength.
Fig.1
Fig.2
Fig.3
Fig.4
Fig.5
Fig.6
Caution
Please install items in pairs at least to avoid any acccidents. (Fig.7)
Do not use other companys' cable products. It may cause rust and strength reduction.
Please make sure that the cable do not contact with hanging items, walls and other materials. The cable may be scratched, which may cause strength reduction.
Please increase cable diameters to make allowance for installing items in high traffic areas where people contact the items because the excessive tension may be applied and the safe working load may be exceed.
When hanging items in midair, please make allowance for installing it, which may damage the items, walls and others in case the items shake.
Be careful not to get injured when handling the frayed cable. And please replace cables or cut the end of the cable because the frayed cable cannot be inserted into our products. (Fig.8)
Cable ends must be neat and clean to avoid fraying, and allow glue to dry completely before installing the cable into the hardware.
hen using our products, positioning the cable vertically down from the rail will be optimal. Positioning the cable in a different way, such as diagonally, will lower the safe working load.
Do not use our universal type products in the wrong direction which do not rotate. (Fig.9)
Please operate floor attachments (AM-23, BS-23, SF-23, MF-23 etc.) by hands. The excessive tension may cause the attachments break.
Do not use our products under the condition that twisting force is always applied to the cable, such as rotating the hanging items. The cable may be pull out the grippers. (Fig.10)
Fig.7
Fig.8
Fig.9
Fig.10
Note
Please make sure that cables and grippers must be a straight line. (Fig.11)
Do not apply excessive load on the cable intentionally when the cable is tensioned.
Do not pull the cable strongly with bare hands, or you will get injuryed.
Do not use our products outdoors or in environments with excessive moisture or chemicals.
Do not use our products as a structure.
Please make sure to screw the safety caps of grippers completely.
When attaching products to shelves, pipes, etc., the tension of the cable may be loose due to elongation by the weight. In that case, please tighten the cable again with the floor attachment.
New grippers may not move smoothly due to factors such as cable clogs and dust clogging inside the grippers under installing. Also, dust may accumulate inside after long time use of grippers. In these case, please replace the new gripper.
Before using our products, be sure to check the specifications and confirm whether it applies to the purpose of use.
Fig.1
Fig.2
Fig.3
Fig.4
Fig.5
Fig.6
Fig.7
Fig.8
Fig.9
Fig.10
Fig.11
